5M Reflective infrared Beam detector NO,NC,COM
Model: GW5L
Trade($):
$89.00
Retail($): $99.00
Stock:
1000
Quantity:
产品详情
Review(0)
Sales records(0)

5M Reflective infrared Beam detector NO,NC,COM

Active Infrared Beam Sensor


Model: GW5L

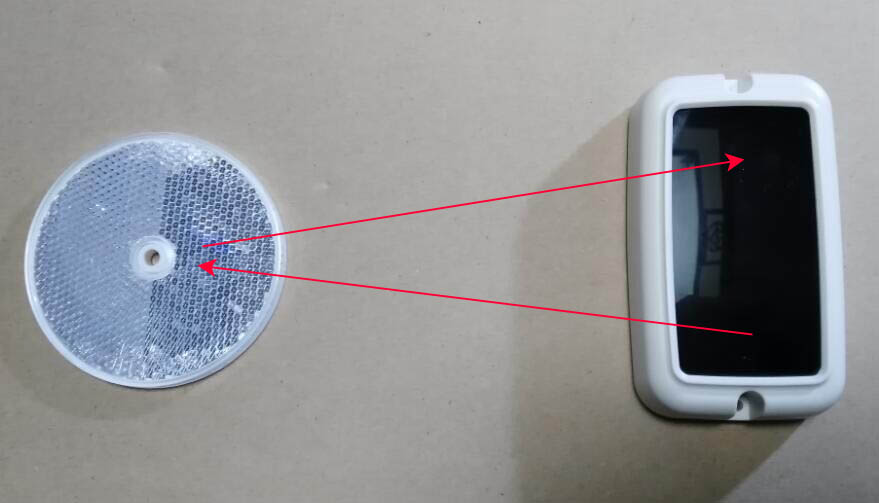

Only Transimitter (Sensor) needs power supply, Reflector doesn't power supply.

Reflective ,easy to install

Features:

1)Apply to the alert of room near the entrance,exit,window,passage,stairs

2)Transimitter and receiver integration design,adopt  lens reflex way alert, simplify complex wiring work

3)Detector adopt thin design,thickness only 23.3mm,wall installation,elegant appearance

4)Material:ABS(white)

Applications:

factory/school/hospital/villa/store/shop

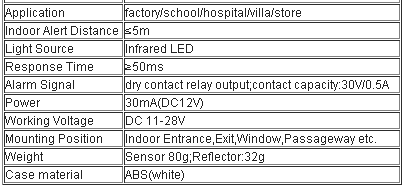

Specifications:

1)Indoor Alert Distance≤5M

2)Light Source: Infrared LED

3)Response Time≥50ms

4)Relay Output:

NO,NC,COM (Voltage-free)

Contact Capacity: 30V/0.5A

5)Power Supply: DC12V 30mA

6)Working Voltage: DC11~28V

7)Mounting Position: Indoor Entrance,Exit,Window,Passageway etc.

8)Weight

Sensor: 80g;

Reflector: 32g

9)Case material: ABS(white)

Package includes:

5M Reflective infrared detector x 1
