DC12V Wireless Remote Control Switch 2 Channel 3000M
Trade($):
$79.00
Retail($): $98.00
Stock:
1000
Quantity:
产品详情
Review(0)
Sales records(0)

DC12V Wireless Remote Control Switch 2 Channel 3000M

IMG_2719

Model: GWDC12V2CH3B

DC12V 2-CHANNEL remote control switchIMG_2720

Features for receiver:

1)Working voltage is DC12V

2)Working current 20 mA

3)Receiving sensitivity - 90 ma

4)The encoding type: Learning

5)Work point, interlock, self-locking

6)The output capacity of 7A

7)Size: 12 * 30.5 * 45mm

8)RELAY Output:

2 Channel RELAY Voltage-free Output

Relay Contact: NC,NO,COM

IMG_2711

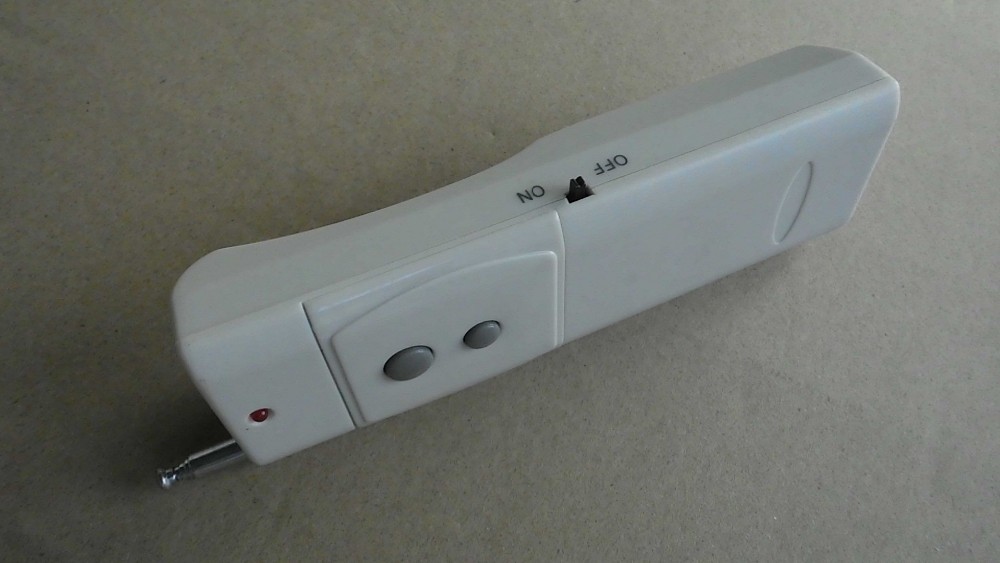

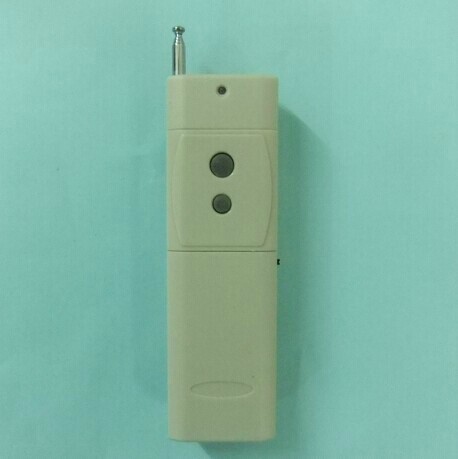

Features for Remote Control:

1)Working voltage: DC9V F22 (don't include)

2)Standby Current: 0 mA (when Switch off)

3)Working Current: 104 mA

4)Encoding:

Learning code

5)Transmission Distance

> 1000~3000M (Max, open receiver plate sensitivity in more than 103 DBM)

6)Output power: 22 DBM;

7)Transfer rate: < 10 KBPS

8)Modulation mode: baton (amplitude modulation)

9)Working temperature: - 10  ~ + 70

10)Size: 127 * 41 * 20 mmIMG_2724

Applications:

Lamp,Light,LED,MotorIMG_2723

Package include:

1) Wireless Receiver x 1;

2) Remote Control 3000M x 1;

3) Protector Cover Shell x 1;

4) User Instruction.IMG_2725

IMG_2726
