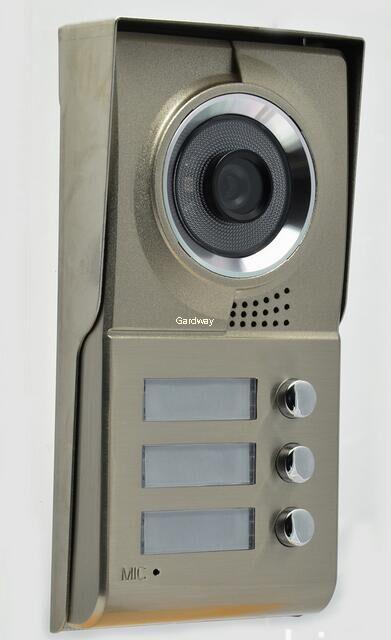

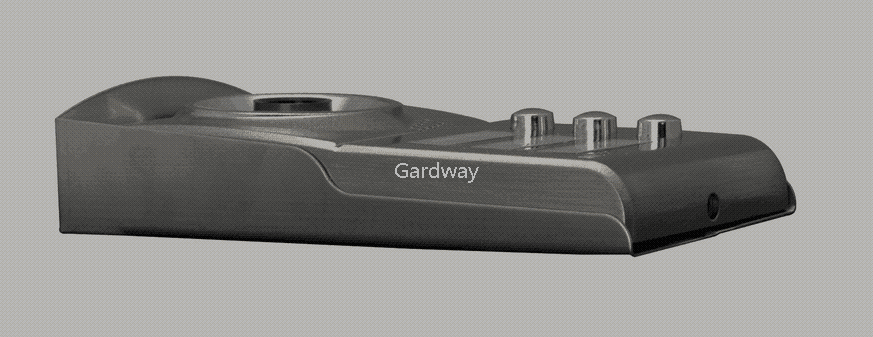

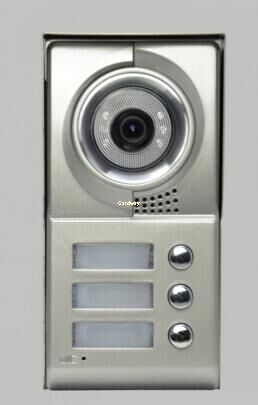

3-way Gate Station with IR Camera & 3 Buttons for Intercom Videophone
This gate station has 3 buttons and for 3 separate units (houses/apartments).
*The first button is for the first unit (monitor),
*The second button is for the second unit (monitor),
*The third button is for the third unit (monitor).
The first button can call and talk with the first monitor only,
the second button can call and talk with the second monitor only,
the third button can call and talk with the third monitor only.
Specifications:
| Screen Size | 8-inch TFT-LCD 800 × 600 RGB |
| Wiring requirements | 30 meters: RVV4 (4 core line) × 0.5 mm; |
| 50 m: RVV4 (4 core wire) × 0.75 mm |
100 meters: RVV4 (4 cores Line) × 1.0 mm 280M max |
| Camera | CCD/CMOS |
| Working temperature | -15 - 55° |
| Relative humidity | 10 % - 90%(RH) |
| Resolution | 600 TVL |
| Angle | 90° |
| Night vision | Six LED |
| Night vision illumination distance | more than 2 meters |
| Waterproof | YES |
| Outdoor dimension | 93(W) × 185 (H) × 30 (T) mm |
| Outdoor Weight | 0.43 kg |
| Indoor dimension | 275 (W) × 169 (H) × 17 (T) mm |
| Outdoor Weight | 0.62 kg |
| Talk time delay | 90 seconds |
| Monitor time delay | 30 seconds |
| Indoor adapter | Input voltage: AC100-240V 50Hz - 60Hz; Output Voltage: DC15V 1200mA |
| Outdoor adapter | AC12V 1200mA |
| Dissipation | stand-by <0.5W working <10W |
| Package | Color box |

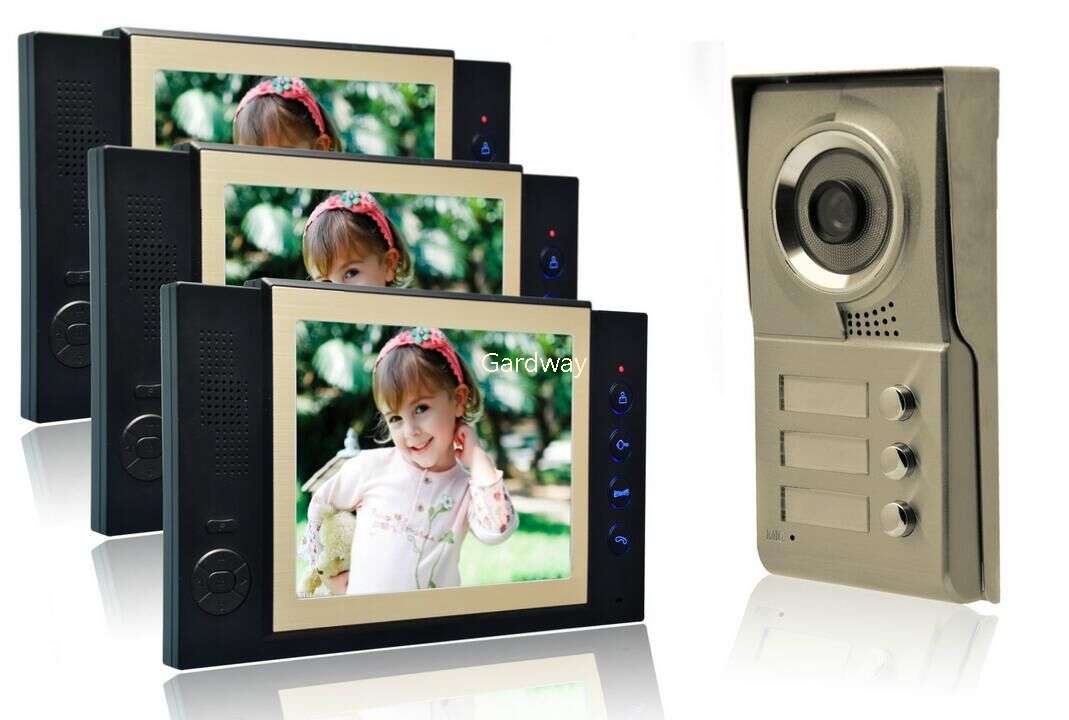

Package:
1)3-way Gate Station with IR Camera & 3 Buttons x 1
2)8" Color Monitors x 3
3)Power Adapters
User Manuals
NOTE:
This order is only for 3-way Gate Station with IR Camera & 3 Buttons, not include any monitors.
