Product Detail
4-CH Wireless NVR 960P KIT
SKU: NVRKit02
Trade($):
$798.00
Retail($): $898.00
Stock:
1000
Quantity:
产品详情
Review(0)
Sales records(0)

4-CH Wireless NVR KIT Vedio Surveillance Complete System with 4 PCS WIFI IP CCTV Camera P2P onvif for Outdoor/indoor Waterproof 1.3MP Camera 2TB

Model: NVRKit02

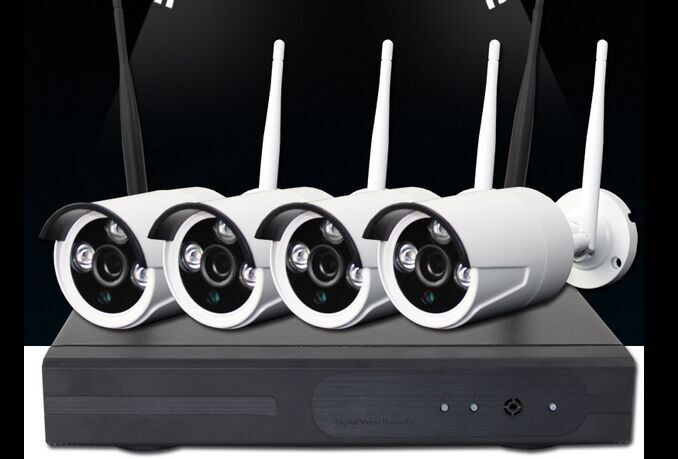

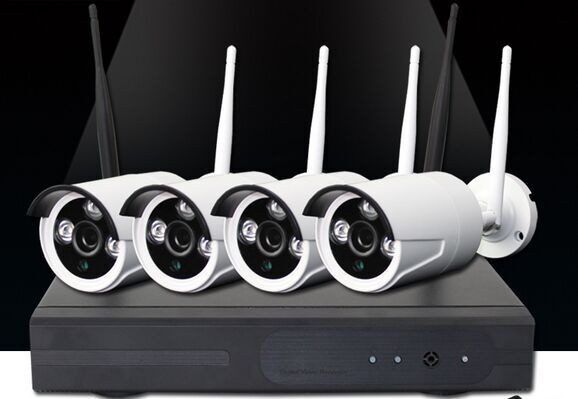

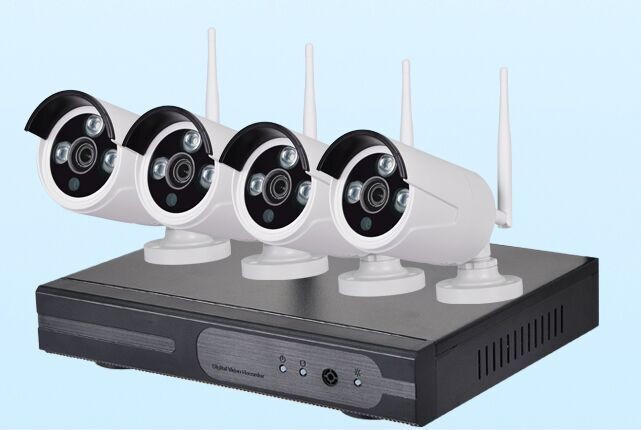

This CCTV Systems includes a 4-Channel Surveillance Security NVR and 4 pcs 1.0  megapixels indoor/outdoor Weatherproof Day & Night surveillance IP Cameras with Array 3 pcs LED IR.

Both of cameras and nvr are bulit in wifi module,perfect in wifi perfomamance.and all is strong wifi module,whithin obstacle it perfect reaches nearly distance transfer wifi through wall and can reach 300m without obstacle.it is amazing ,provide you a best wirelss nvr kit.anywhere and anytime view.

Dual core processor,allow multiple users online view at the same time. (Max 10 users)

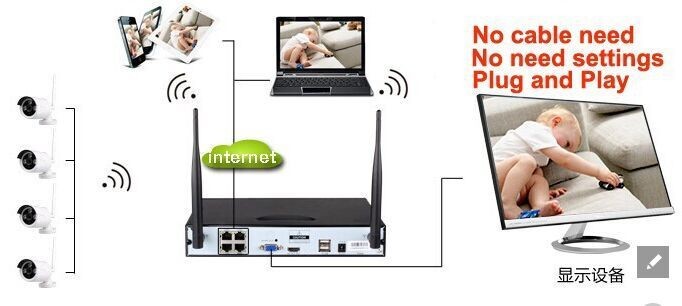

No need cables, No need ip settings ,Plug and Play,providing a perfect surveillance solution for your home and business, very easy to build up.


Features:

1)don't need wired cables

you can also connect cameras with Cable,or wireless.

2)2TB HDD for about 25 days Motion-Detection recording

3)Plug & Play

4)Wireless NVR and Wireless Cameras

5)HD 960P,Night-vision

6)P2P,Mobile App Viewing

7)Two Antennas Design, Space Distance: 300M max

8)Linux System

9)Both VGA/HDMA Output, support 1920x1080

10)IP67 Waterproof Camera

Features of NVR:

1)Operating System: Embedded Linux OS

2)AV(audio/video) input

*Network video: 4CH

*Network video input broadbank: 20Mbps

3)AV(audio/video) output: VGA and HDMI

1-CH,resolution:1024*768,1366*768,1440*900,1920*1080p

4)AV CODEC

*Video resolution: 1.3M/960P

*Video standards: PAL(625line,50f/s);NTSC(525line,60f/s)

*Image encode: H.264(High profile)

5)Video

*Dispaly quality: 960P

*Playback quality: 960P

*Encode capacity: Full real-time 4ch

6)Specification

Synch-playback: 4CH

7)Video control

*Video/Capture Mode: Manual,time,motion,alarm

*Playback mode: Real time,Reutine,Event

*Backup: USB backup

7)HDD

*Type: 1*SATA interface

*Max Capacity: 4TB at most for each

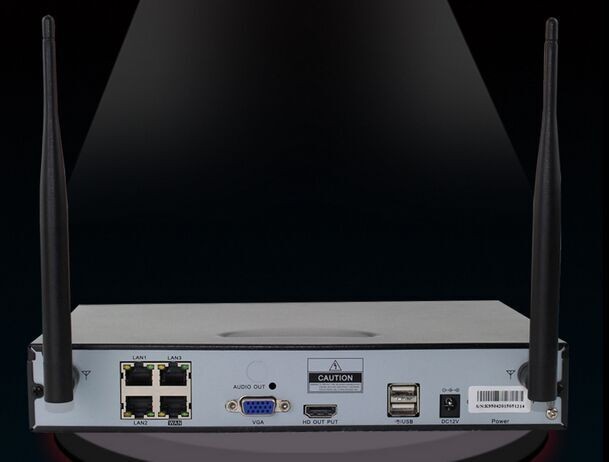

8)External interface

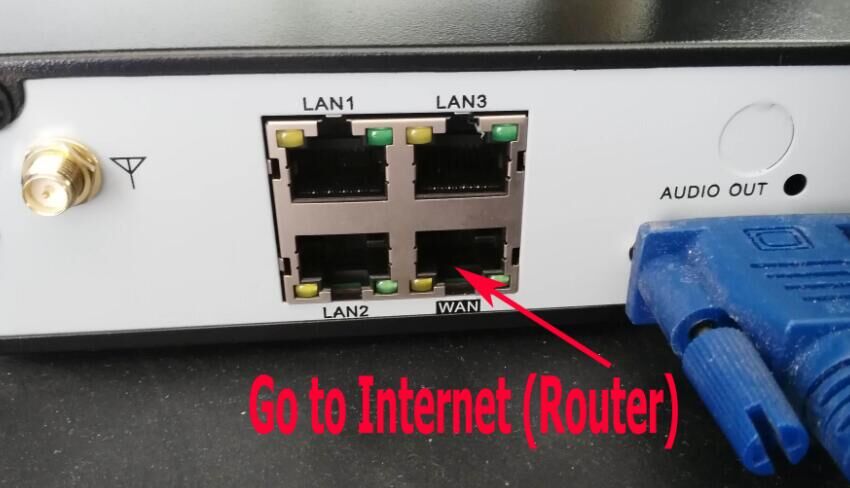

*Network Interface: 1 adaptable RJ45 10M/100M,1WIFI interface

*USB Interface: 2 x USB 2.0

9)Network control

 *Protocol: UPnP(paly&plug),SMTP(email service),PPPoE(dial-up),DHCP(Automatically obtain an IP address),etc

*Power: DC 12V 3A

10)Others

*Working Temperature: -10°C-55°C

*Woring Humidity: 10%-90%RH

*Consumption(excluding HDD)Others: ≤ 5W

*Size: 257(L)*210(W)*45(H)mm

*Wireless: 802.11a;2.4GHz

*Weight(excluing HDD): ≤1KG

KIT01

Features of camera:

1)Operating System: Embedded Linux

2)Image Sensor: 1/4'' Progressive Scan Sensor OV 9712 CMOS

3)TV System: NTSC/PAL

4)S/N Ratio: >42dB

5)Resolution: 1280x720  High Defination

6)Minimum Illumination:

Color:0.1 Lux,B/W: 0.01 Lux

8)Lens: 3.6mm

9)OSD: Date Time & Title

10)White Balance: Auto

11)Day & Night: Auto/Color/BW

12)3D-DNR: Auto

13)Mirror/Flip: On/Off

14)Privacy Masking: 4 Zone Selectable

15)Frame Specification:

*Three streaming at the same time

*H2.64 128x720@30pfs or below

*H2.64 640x480@30pfs or below

18)Anti-thunder Level: standard IEC61000-4-5

19)Material: Metal Shell

20)Weatherproof: IP67

21)Number Of IR Leds: 3pcs array leds

22)IR Distance: 10-20m

23)Power Input: DC12V1A

24)Consumption: ≤6W

25)Interface: RJ45/WIFI 802.11b/g/n

26)Working temperature/humidity:  -10°C-50°C/30%-80%RH

27)Storage temperature/humidity: -20°C-60°C/20%-90%RH

28)Size: 205(L)x70(W)x55(H)mm

29)Weight: 500g

Package Includes:

1 x 4-Channel wirelss 960P NVR with two antennas

4 x 1.3 Megapixels Weatherproof outdoor WIFI IP Camera with 3pcs Array LEDs

1 x Power Supply 12V3A for NVR

4 x Power Adapter 12V1A  for Cameras

1 x HHD 2TB

1 x 1m Network Cable for NVR

1 x USB mouse

 KIT02KIT03KIT04KIT05KIT06KIT07

Note:

1)3.6mm lens default of this camera. (6mm /8mm lens for optional),If the buyer want other size lens, please give us message.

2)LENS--ANGLE--DISTANCE

2.8mm--89.9°--0-4M

3.6mm--75.7°--0-5M

4mm--69.9° --0-6M

6mm--50.0°--5-10M

8mm--38.5°--10-20M

12mm--26.2°--20-35M

16mm--19.8°--35-50M

25mm--10.6°--50-80M

NOTE:

1)All cameras are wireless (Wireless Video + DC12V Power 5521 Plug) and/or wired (RJ45 for both DC Power and Video).

2)NVR can support 4-Channel wireless, it also has 3-channel wired, so it can combine wireless (4-channel max) and wired (3-channel max).
