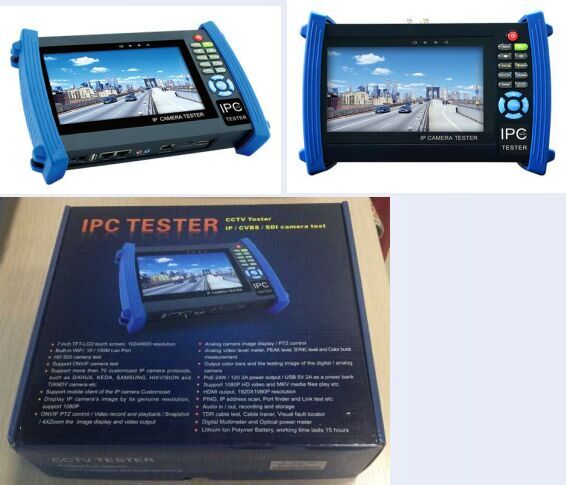

CCTV Video Surveillance Tester IPC8600 Analog / IP Network Camera / PTZ Control meter

CCTV Engineering Tester for Video Surveillance and Analog / IP Network Camera Test  / PTZ  Control DC12V

Model: IPC8600

Features:

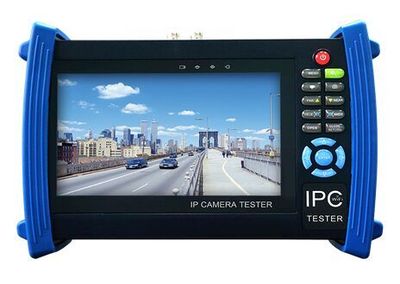

1)7" HD LCD screen display, 1024 x 600

2)HD digital camera image input & output

3)VGA signal input, easily and conveniently to test and set the DVR/ NVR.

4)DC12V2A power output for camera

5)USB DC5V2A power output for mobile phone and other device

6)LED Lamp, easy to operate at night

7)Micro SD card moveable

8)User-defined shortcut keys,(F1 and F2)

9)LCD screen brightness/contrast/color Saturation adjustable

10)Automatically adapts and displays video format NTSC/PAL

13)10 x Zoom video image can be magnified to view the details, easy to use video record and playback,Snapshot and save the current image as JPG in the SD card

14)PING testing,test IP camera or other network devices’ Ethernet port  and IP address.

15)Video signal PEAK level, SYNC level, COLOR BURST chroma level measure

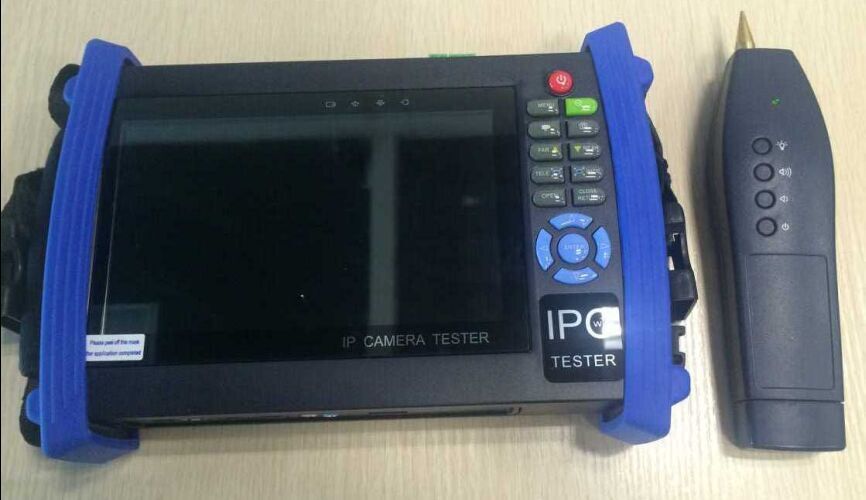

16)Cable scan, send specific signal, easily to find correct cable quickly from clutter cabling system.

16)IP address scan, quickly search IP address for connected IP camera and other network devices

17)POE voltage measure,test PoE switch’s voltage to IP cameras, wireless AP device and other PD devices

18)Device Port flicker,easy to find the connected PoE switch port by sending special signals, the connected PoE port will flicker at special frequency.

19)Link monitor; check setting IP address whether occupied.

20)Battery: 7.4V/6500mAH

21)Size/Weight: 256 x 173 x 50mm

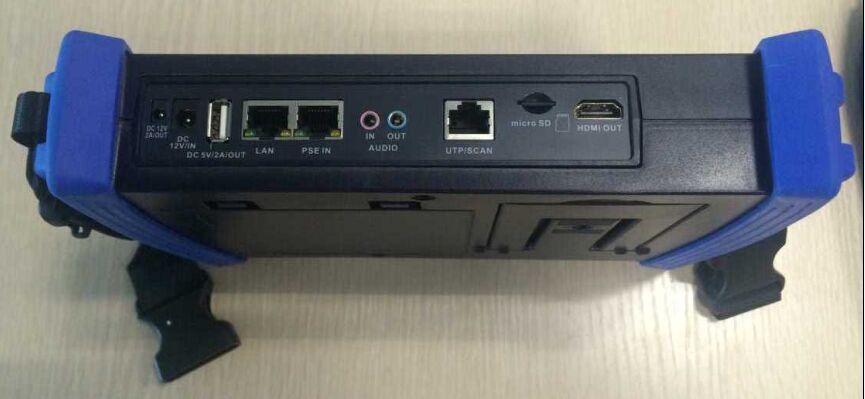

Connections:

1)Video: BNC IN, BNC OUT

2)Audio: IN,OUT

3)UTP/SCAN,RJ45

4)HDMI OUT

5)LAN,RJ45

6)PSE IN,RJ45

7)DC12V IN,DC 5.5x2.1MM

8)DC5V2A OUT,USB FEMALE

9)DC12V2A OUT,DC 3.5x1.35MM

10)micro SD

11)Data Communitions

*RS232: Rx Tx GND

*RS 485: - +

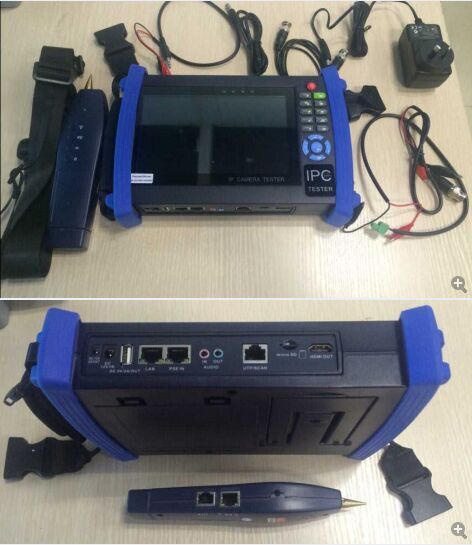

Package includes:

CCTV Surveillance Tester x 1
