VGA USB Extender 100M via UTP CAT RJ45 LAN cable

100 Meter KVM Extension Keyboard Video Mouse Repeater Adapter VGA USB Extender via UTP CAT RJ45 LAN cable

Model: MT100

VGA + Audio Signal Extender 100M Amplifier Signal RJ45 CAT-5e/6 Ethernet Cable

The VGA extender includes a signal transmitter and a receiver. The transmitter which is linked with main engine will convert the VGA signal to standard TCP/IP and transmit by internet. The receiver which is connected with the display will convert the standard TCP/IP signal into VGA signal. In brief, extend the VGA signal 100 meters by a CAT -5e /6 cable.

Feature:

Use CAT -5e /6  replaces VGA wire

Support IEEE standard 568B

Support all kinds of computer system

Support hard disk video recorder, monitor host and other equipment which has a VGA interface

Pure physical hardware design

Small, lightweight, no power required, easy operating and flexible in wiring

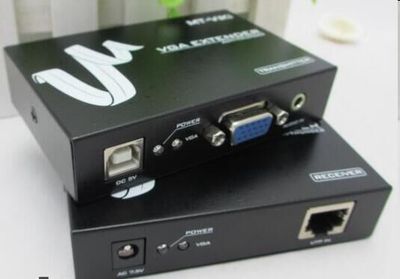

Sender(Transmitter):

Receiver:

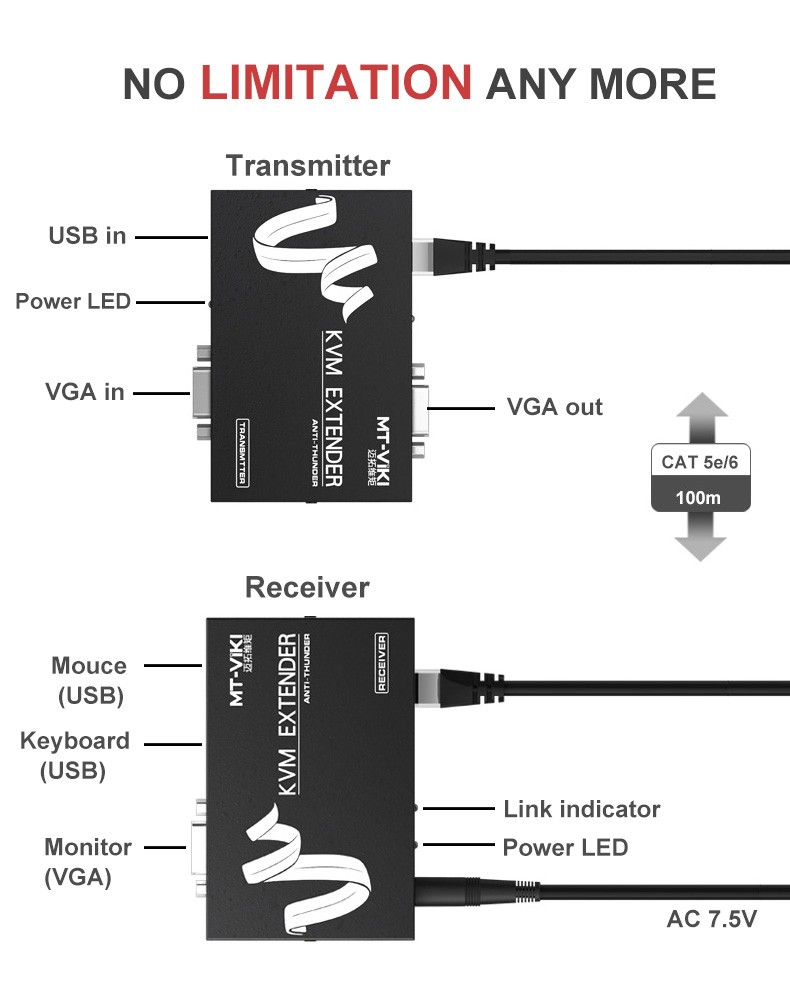

Wiring Diagram:

Package Included:

1 x Extender Sender

1 x Extender Receiver

Parts
