Universal Wireless Receiver Module & Remote keyfob Control DIY Kit DC/AC12V~24V
SKU: KDL-55EX720
Trade($):
$69.00
Retail($): $98.00
Stock:
999
Quantity:
产品详情
Review(0)
Sales records(1)

Universal Wireless Receiver Module & Remote keyfob Control DIY Kit DC/AC12V~24V


Wireless Remote Control Keyfob Garage Door KIT

DIY Universal Wireless Remote Control Kit (Input DC/AC12V~24V ) for Garage Door or automation Slide/Swing Gate System.

Model: Easy2

RemoteNew

This 2 Remotes and add-on receiver can be used to replace any manufacturers remote as long as there is an "Emergency" switch or wired "Exit" in door switch (normal situation). It allows the existing remotes to operate in parallel too. Can be used to replace those hard to get the old remotes.

Features:

1)Input: DC/AC12V~24V;
2)Distance: 50~100 Meters;
3)Frequency: 433MHz;
4)Receiver size: 60 x 40 x 25(mm);
5)Hop Rolling Code Mode,more safer and reliable;
6)Relay Output: Voltage-free NO,Com.


EasyB

Application:
Garage Door,Automation Electric Gate sliding or Swing,Alarm,Control,Home automation.
GhoverRemote1A

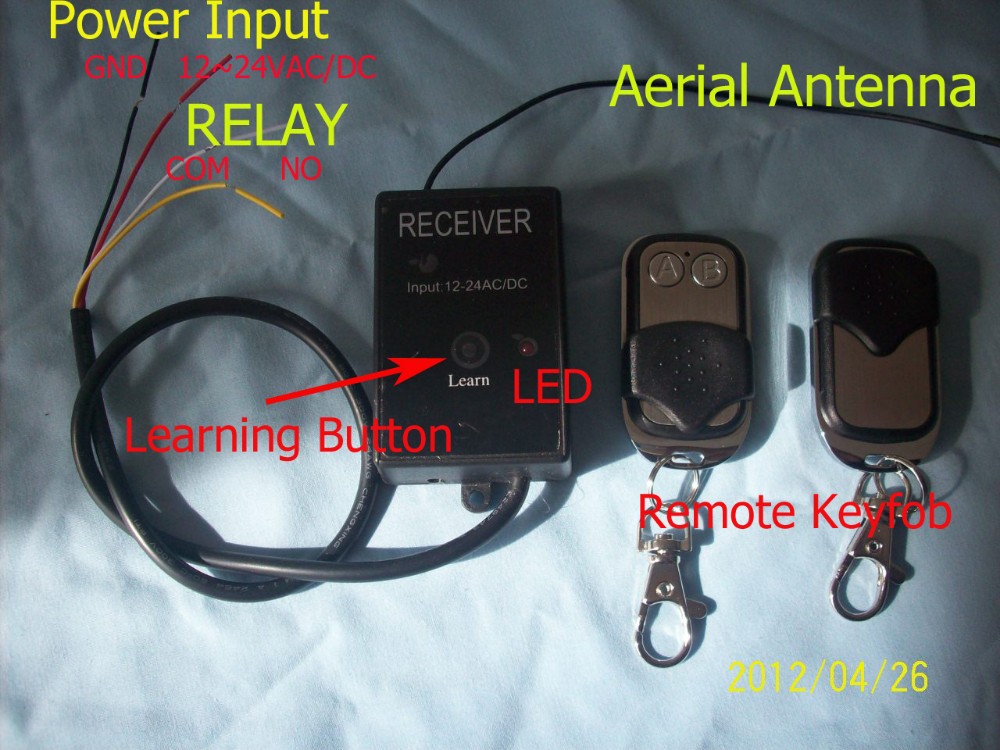

Wiring Connection:
1)Power Supply
*BLACK WIRE: GND;
*RED WIRE: DC/AC12V~24V;

2)Relay Output
*YELLOW WIRE: Com(Relay Com) or NO(Relay Voltage-free Normally-Open Contact);
*WHITE WIRE: NO(Relay Voltage-free Normally-Open Contact) or Com(Relay Com).

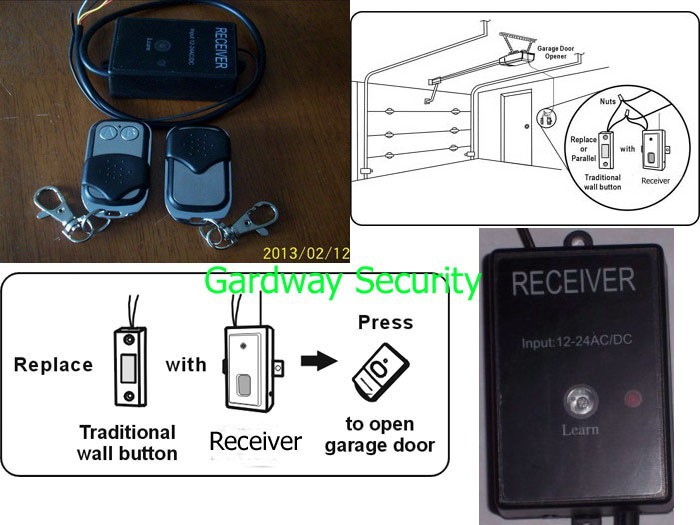

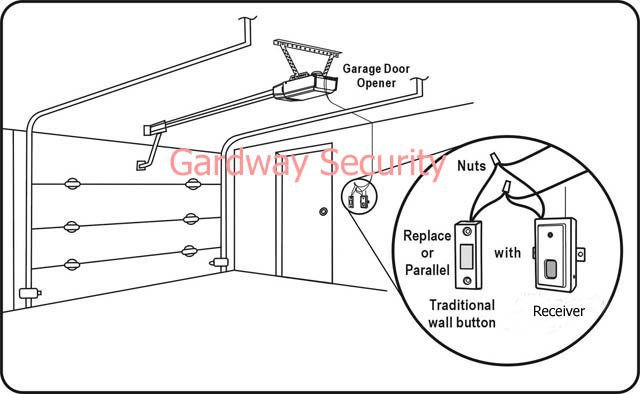

For Garage Door Opener
*NO(Relay) on Receiver wiring to Door Control Button;
*Com(Relay) on Receiver wiring to Com.

For automation Gate Operator (Slide or Swing)
*NO(Relay) on Receiver wiring to OSC(Start or Open/Start/Close);
*Com(Relay Com) on Receiver wiring to Com.
New1a
Package Includes:

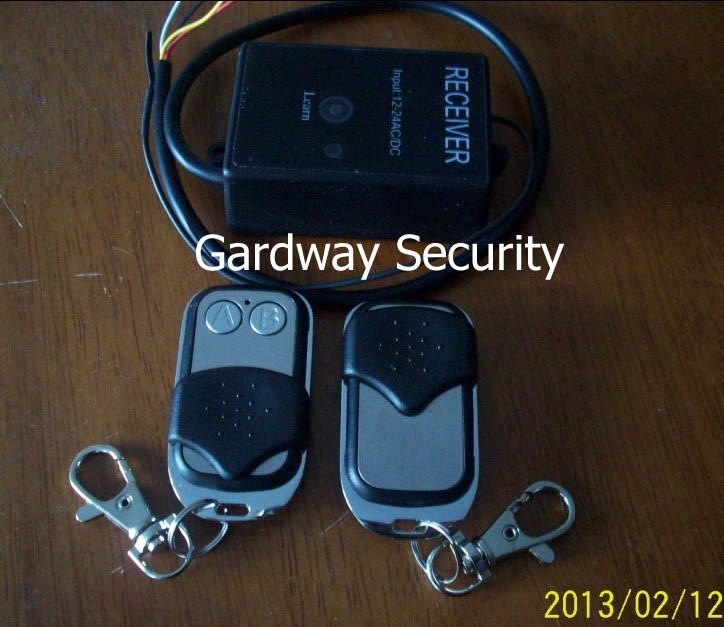

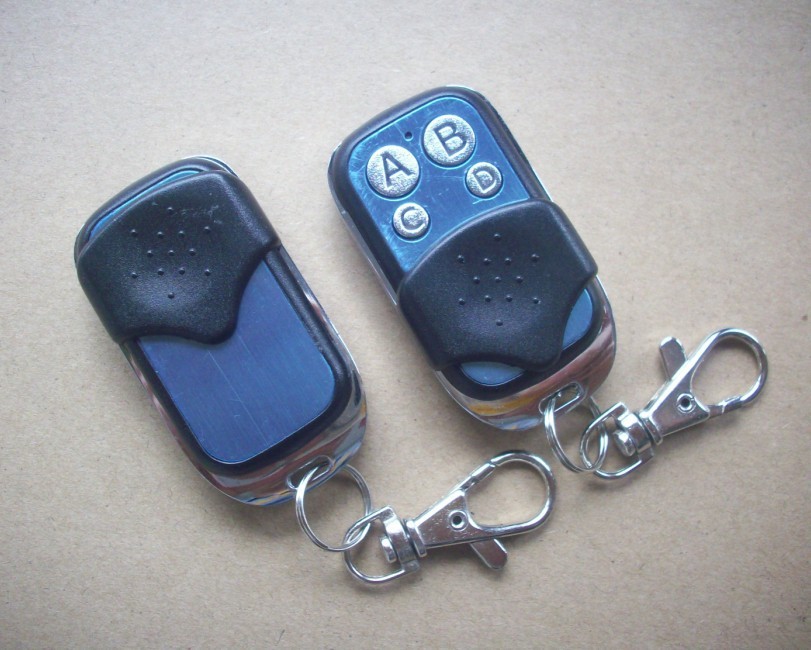

1)Wireless Remote Control 4-key keyfob x 2;

2)Wireless Receiver Unit x 1;

3)User Instruction.

Extra $ for an additional remote keyfob.

Extra $ for a Wireless Receiver Unit.

Note:

1)most of operators or openers can supply power output DC/AC12V~24V, so you don't get supply from other Power Adaptor!

eg. Garage Door Opener Model: Guardian 21230L,  DC24V between Terminals 2(GND) and 4(+)

2)This kind of Remote keyfob is also compatible with BFT Automation Gate.

3)This package doesn't include any batteries due to Air Safety Post Delivery.

Questions and Answers

Question:

Hey just wondering, if I bought 2 receivers, could I get one button on the remote to control one receiver and the other button to control the second receiver? Cheers, Rob

Answer:

Yes, you can do,so you can control two openers (say,one is garage opener and another is auotmation gate operator) on one remote keyfob. For 4-key remote keyfob, you can control 4 devices at most.

Our remote keyfob is compatible with BFT Automation Gate, you can control BFT operator (by programming keyfob into BFT operator) and don't need wireless receiver unit.
