Wireless Digital Keypad & Receiver Controller KIT for Door Access Control
Wireless Access Controller Keypad
Model: GW206W

This is a WIRELESS access control keypad. It is generally used in conjunction with a gate operator to allow pin code access to open/close the gate.

Adopting wireless emitter and receiver to achieve using
access controller by password.
Adopt microcomputer control system with password using.
With far and stable transmit distance,adopt DIP switch for
conventient password setting by users.
Save the electricity and lengthen the battey using time
Easy operation of password setting, with initialled function by reset button in case of password forgetting.

Specification:

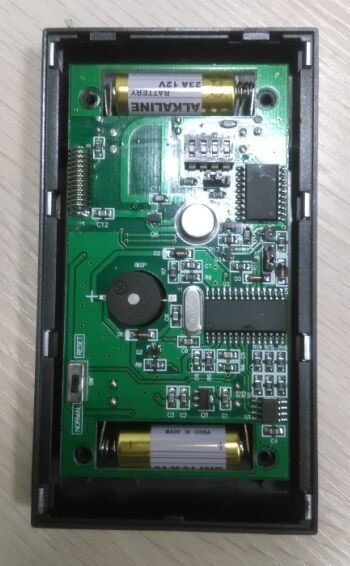

1)Power supply: 2*12V (23A) battery (exclude)
2)Standby current: dormancy working mode, 6 a
3)Action current: 23Ma
4)Bit of password: 6 bits
5)Model of work: press the key FUC
6)The life of battery: 320days
7)Distance of emitting: 5m

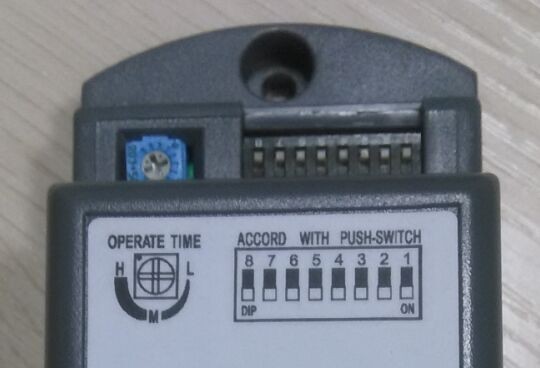

8)The model of matching code: DIP switch
9)Distance between wireless keypad and receiver: 10M

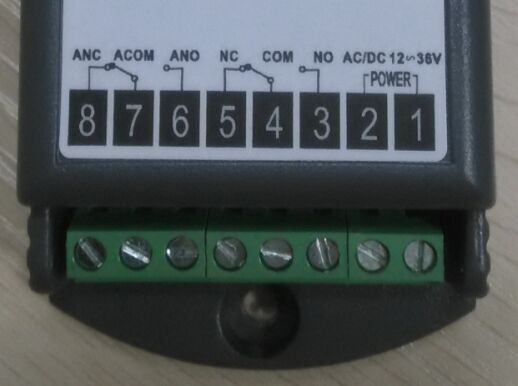

10)Relay Output: Voltage-free NO, NC, Com.
11)Relay Output Working Modes: Momentary (M)
12)Size:
*wireless password access
113Lx63Wx20H (mm)
*receiver
123Lx50Wx32H (mm)

Note the wireless password access can only work properly when its DIP switch code has been matched with the receiver's DIP switch code.

Package include:

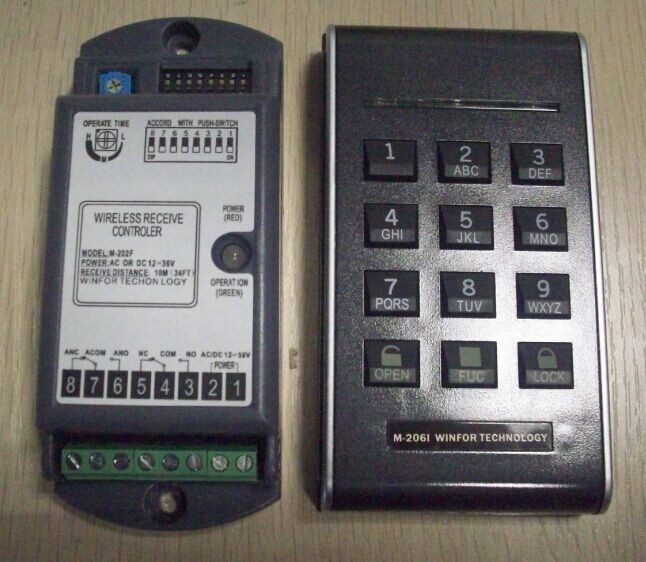

1)Wireless Keypad x 1;
2)Wireless Receiver x 1.


Note:
This package doesn't include any battery due to International Air Safety Post Delivery.
