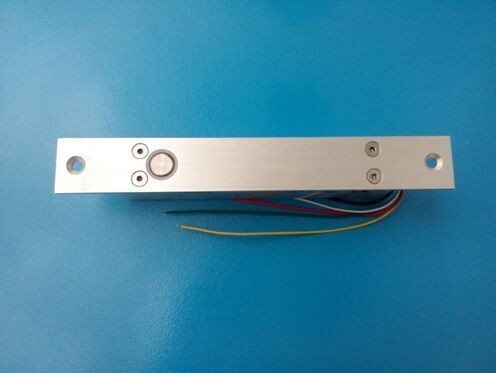

Narrow Electric Bolt Lock electric mortise lock 5 Wire Delay 0/3/6S
SKU: HTS3510/93
Retail($): $49.00
Sales records(0)

Subminiature electric mortise lock/narrow bezel electric mortise lock/v line at low temperature with time delay feedback / 0 to 6 seconds


Cost-effective 5 line electric mortise lock3


Power safety type: automatic lock

Lock body size: 200 * long wide high 28 * 38 (MM)

A convex lock size: 15 mm diameter 12 mm

Adjustable delay Settings: 0 3 6 seconds

Output feedback: NO NC COM output feedback

Working voltage: 12 VDC + 10% range

Starting current: 950 ma (current)

Working current: 150 ma (full locked)

Lock core strength: stainless steel polishing process under 800 kg tensile force

Choose the door type: wood fire door glass door, metal door.



Power lock, magnetic induction unlock

Pearl: reinforcing the positioning function

Delay function: no

With double current overload protection device Power electricity is closed, open the door

A convex lock size: 16 mm (length) x 16 mm (diameter)

Magnetic induction open electric lock, stable performance.

Low current, low temperature.

Starting current: 650 ma

Working current: 450 ma

Inherit the holding power is greater than 1000 kg

Size: 203 x 34x 42 mm

The performance test: the five hundred thousand aging test qualified

Patent design: low power consumption and ultra-low temperature coil design

Open the door way: 180 degrees two-way open the door

Warranty: one year warranty (except artificial or force majeure)


Gate type: wooden door, glass door, fire door, metal door

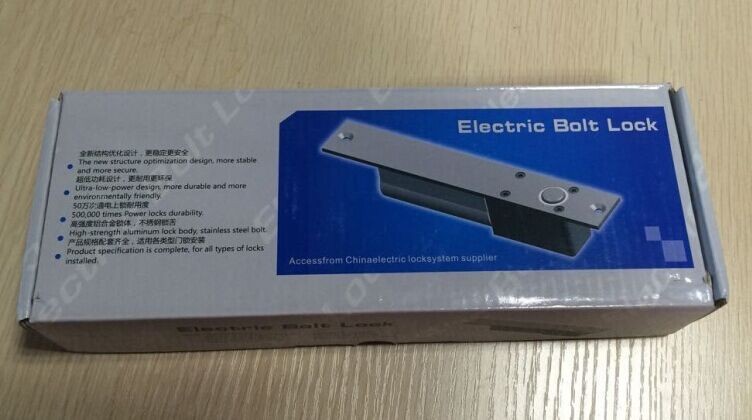

Package include:

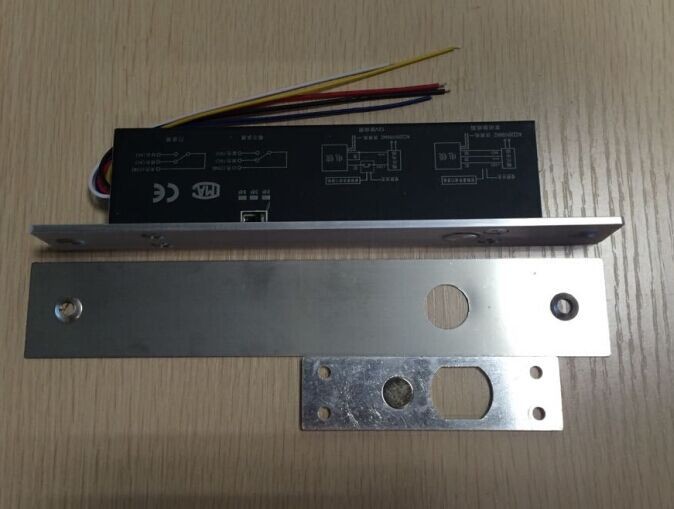

Electric Bolt Lock electric mortise lock x 1
